Applications :

• The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standards :

• RENFE E.T. 03.365.051.6

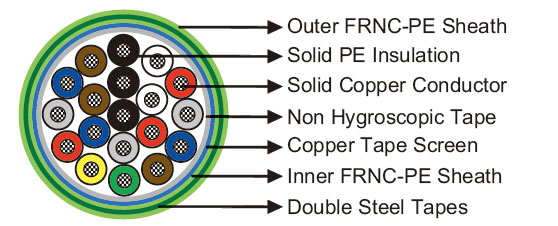

Construction :

• Conductors : Soft annealed solid copper, 1.4 mm nominal diameter.
• Insulation : PE Insulation.
• Stranding : Cores are helically stranded in concentric layers.
• Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
• Screen : Copper tapes with overlap (protection against interference).
• Inner Sheath : FRNC-PE sheath, coloured green.
• Armour : Two layers of steel tape (0.8mm thick).
• Outer Sheath : FRNC-PE sheath, coloured green.
• *FRNC: Flame retardant, non corrosive.


Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.4
  Maximum Conductor Resistance	Ω/km	11.7
  Minimum Insulation Resistance @500 V DC	MΩ.km	35000
  Resistance Unbalance	%	2
  Test Voltage @50Hz 1min
  Core to Core	Veff	2100
  Core to Screen	Veff	2500
  Reduction Factor @100V/km 50Hz		0.3

Mechanical and Thermal Properties :

• Minimum Bending Radius : 10 x OD.
• Operating Temperature : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code	Number of Cores	Nominal Sheath Thickness mm		Maximum Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
1.4mm Conductor, 2.6mm Insulated Wire
RS/CCTSST-FR0.3-2Y(K)HBH-4C1.4	4	1.5	1.6	18.0	705
RS/CCTSST-FR0.3-2Y(K)HBH-19C1.4	19	1.6	1.8	26.1	1362
RS/CCTSST-FR0.3-2Y(K)HBH-27C1.4	27	1.6	1.8	29.2	1648
RS/CCTSST-FR0.3-2Y(K)HBH-48C1.4	48	1.7	1.8	36.7	2348





UV Resistant	Water Resistant	Rated Voltage	Anti Induction	Buried in Ciround	Laid In Ducts	Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
